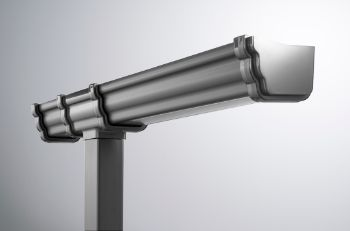

Prostyle is a classic ‘ogee’ styled system suitable for more contemporary styled properties due to its sleek lines and modern gloss appearance. The Prostyle system utilises 65mm Square downpipe and fittings. It is available in the new Anthracite Grey colour option as well as four other colours: Arctic White, Black, Brown and White.
uPVC Fascias, soffits and guttering
Not only are Liniar uPVC soffits and uPVC fascias made from the same 100% lead-free uPVC, the foiled finishes are factory fitted in-house and therefore match our other products perfectly.

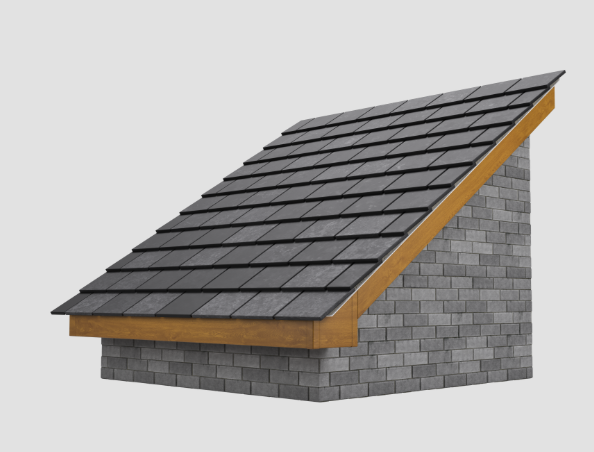

Soffits & Fascias
Liniar soffits and fascias are designed and manufactured at the same UK extrusion facility as its range of windows, doors and roofs – using the same high quality manufacturing processes and materials.

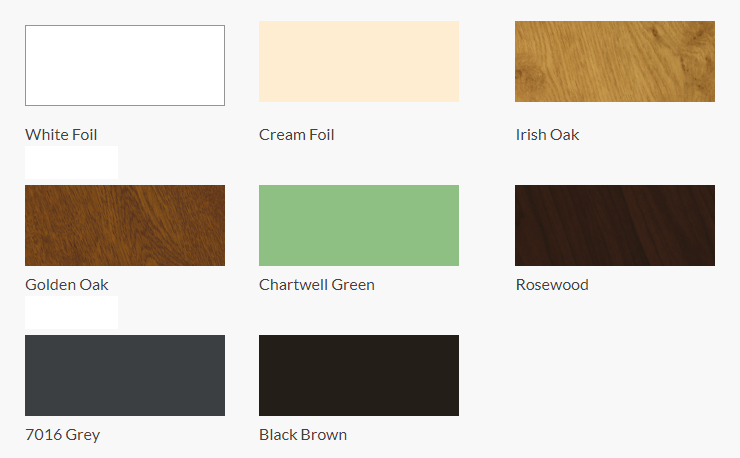

Not only are Liniar soffits and fascias made from the same 100% lead-free uPVC, the foiled woodgrain finishes are factory fitted in-house and therefore match other products perfectly.
Thicker for extra strength
Liniar fascia boards are 20mm thick, instead of the industry standard 16mm, providing greater strength, with longer legs and extra cover on mouldings for easier fitting.
Liniar boards are manufactured using the latest advancements in extrusion equipment and technology to provide a consistent thickness of board with improved flatness.
Time-saving tape
Pre-marked and lined protective tape on the boards makes it easy to find the centre line for the rafter end. The pin guides are set at 100mm centres on each line, and the lines are set at 25mm intervals – to make installation as simple as possible.
Should boards need to be cut, installers are guaranteed a straight cut with no need to peel back the protective tape. There’s also no need to pre-mark the boards, obviously further installation time, while also preventing the risk of scratching or damaging boards.
Fire resistant

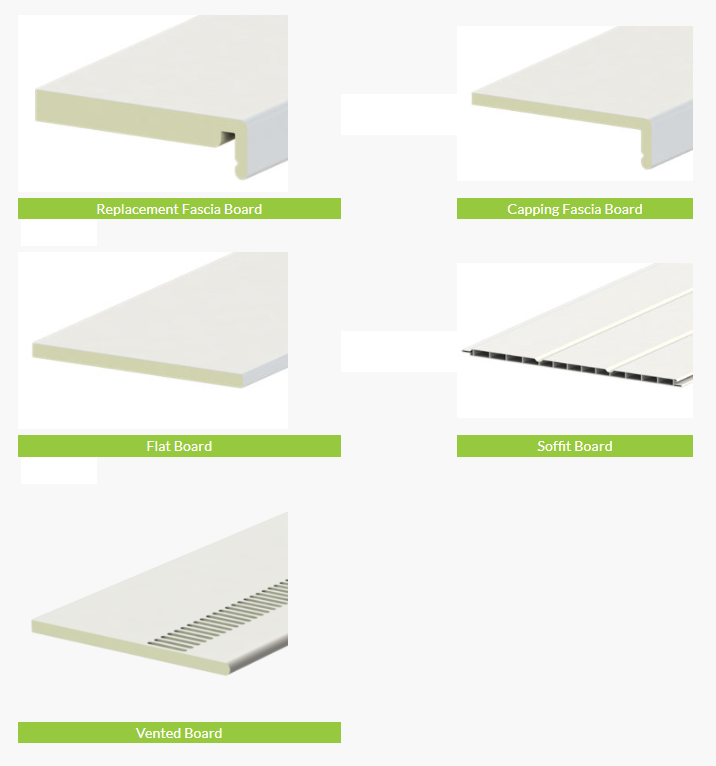

9mm capping boards, 9mm flat boards and 20mm replacement boards have been classified Class 1Y fire resistant with hollow soffit boards achieving Class 2Y.
Guttering and Drainage
Based in Pembrokeshire our guttering comes from Liniar's Rainwater range featuring a choice of quality PVCu systems in a gloss finish which includes four domestic gutter profiles - Roundstyle, Squarestyle, Prostyle, Deepstyle and the high capacity Deepstyle 170 which is suitable for larger commercial and industrial buildings. With up to seven colour options to choose from there’s an option available for every building application, whether new build or refurbishment.
If you are struggling choosing the right colours to suit your house we recommend using this roofline visualiser.
Press the button below to get started.
As well as supplying - we are able to fit your guttering, fascia or soffits so please feel free to contact us.
FEATURES AND BENEFITS
- Quick and easy to install
- UV stablilised, durable and corrosion resistant
- Lightweight, robust materials
- Outlets and unions feature external fixing wings for power tool access
- Integral flexible clips on all fittings for easy connection
- 10 year warranty
CHOICE
- Extensive choice of gutter and pipework profiles
- Available in 4 colours
- Complementary push-fit soil system

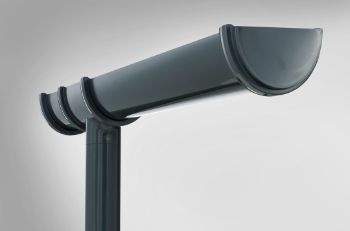

Roundstyle is a traditional 112mm half round system suitable for the domestic housing market. The Roundstyle system utilises 68mm round downpipe and fittings. It is available in the new Anthracite Grey colour option as well as five other colours: Arctic White, Black, Brown Grey and White.

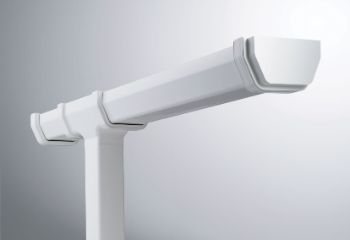

Squarestyle is an angular 114mm rectilinear system providing 20% higher flow capacity than a half round system it is suitable for larger domestic roofs. The Squarestyle system utilises 65mm square downpipe and fittings. It is available in four colours: Black, White, Brown and Arctic White.

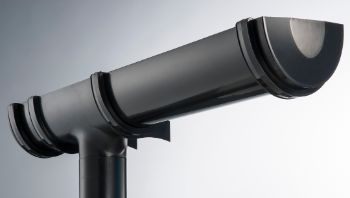

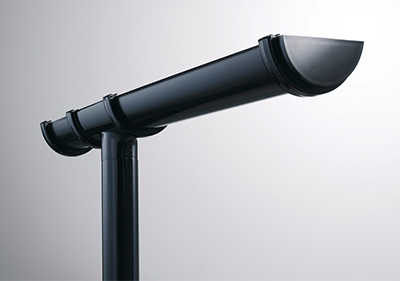

Deepstyle is a semi elliptical system which offers more effective rainwater drainage on larger roof areas. This can reduce the number of downpipes required, providing cost savings and perhaps overall appearance improvements. The system is characterised by an easy fix clip system, which facilitates simple installation whilst external fixing lugs allow easy access for cordless power tools. The Deepstyle system utilises 68mm round downpipe and fittings. It is available in six colours including Anthracite Grey as well as Black, White,
Deepstyle 170 is a high performance industrial rainwater system offering increased drainage capacity for larger commercial projects, factories, warehouses, farm buildings and apartments. The design features innovative CLIP & SEAL technology for ease of installation, superior sealing and exceptional reliability. Strong and durable, Deepstyle 170 is manufactured from UV resistant PVC. The system’s robustness has been fully tested to BS EN 1462 Load Class H, whilst its unique formulation provides long-term weatherability for the systems high gloss gutter, fittings and downpipes. The system is available in Black and Grey.
Sometimes there is such a lot of choice that often you are not sure where to start.
Why not drop us an email, send a message, pick up the phone or come and see us at our display centre. We are here to help you and give the best advice we can.
